Compact and robust.
User-friendly design.

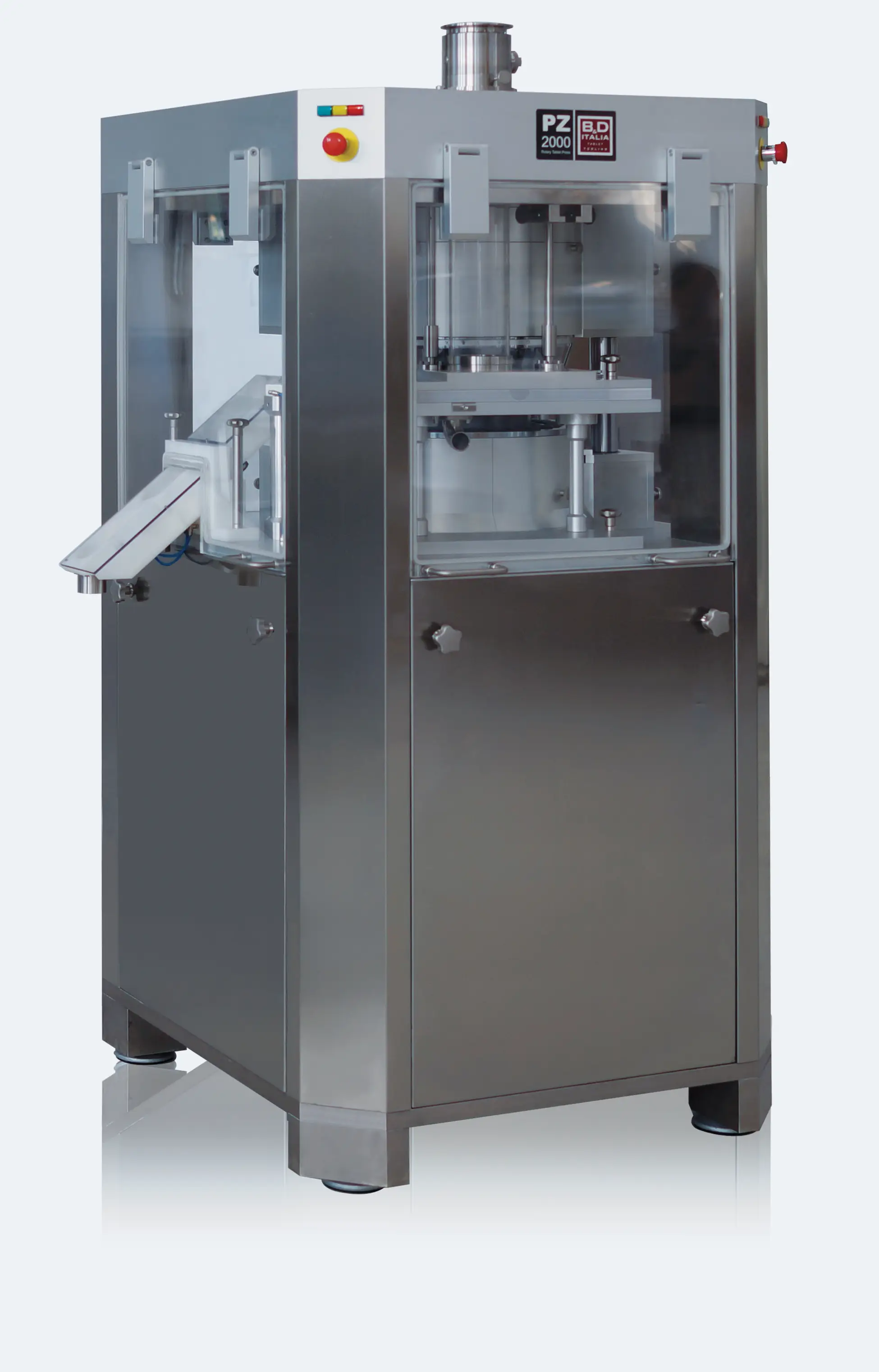

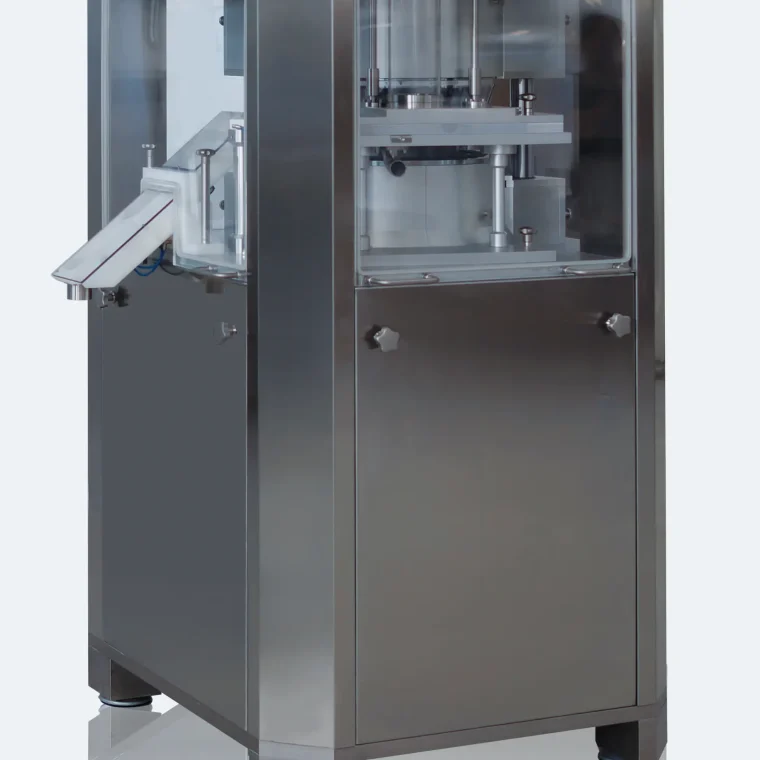

The PZ-2000 is a single-layer rotary tablet press that combines technological innovation, high performance, and a compact design, making it ideal for meeting international cGMP production standards.
Technological innovation: Cutting-edge solutions to optimize the compression process.
High performance: Capable of operating at high pressures without vibrations.
Compact design: Robust and compact structure that ensures stability and long-lasting durability.

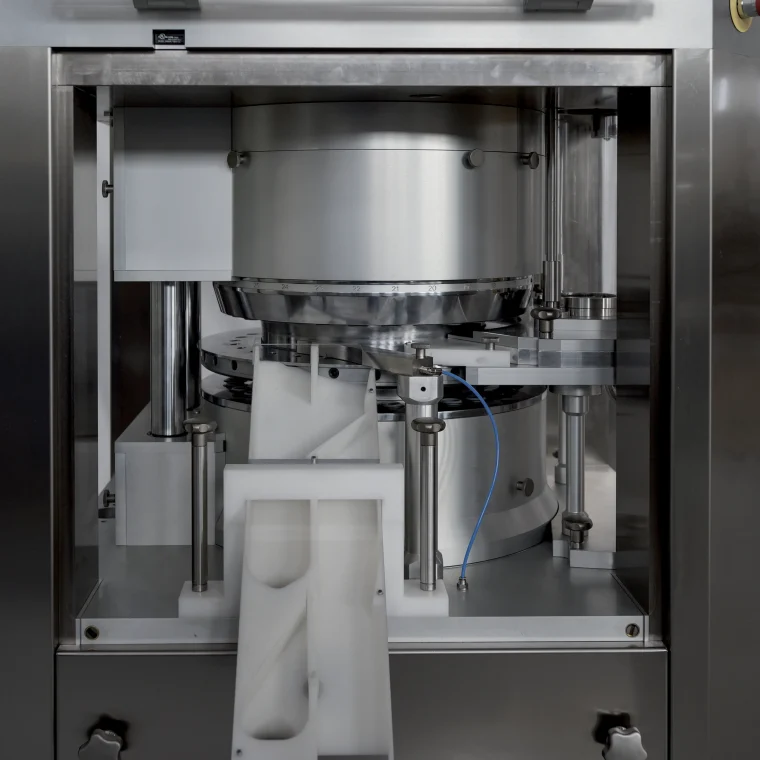

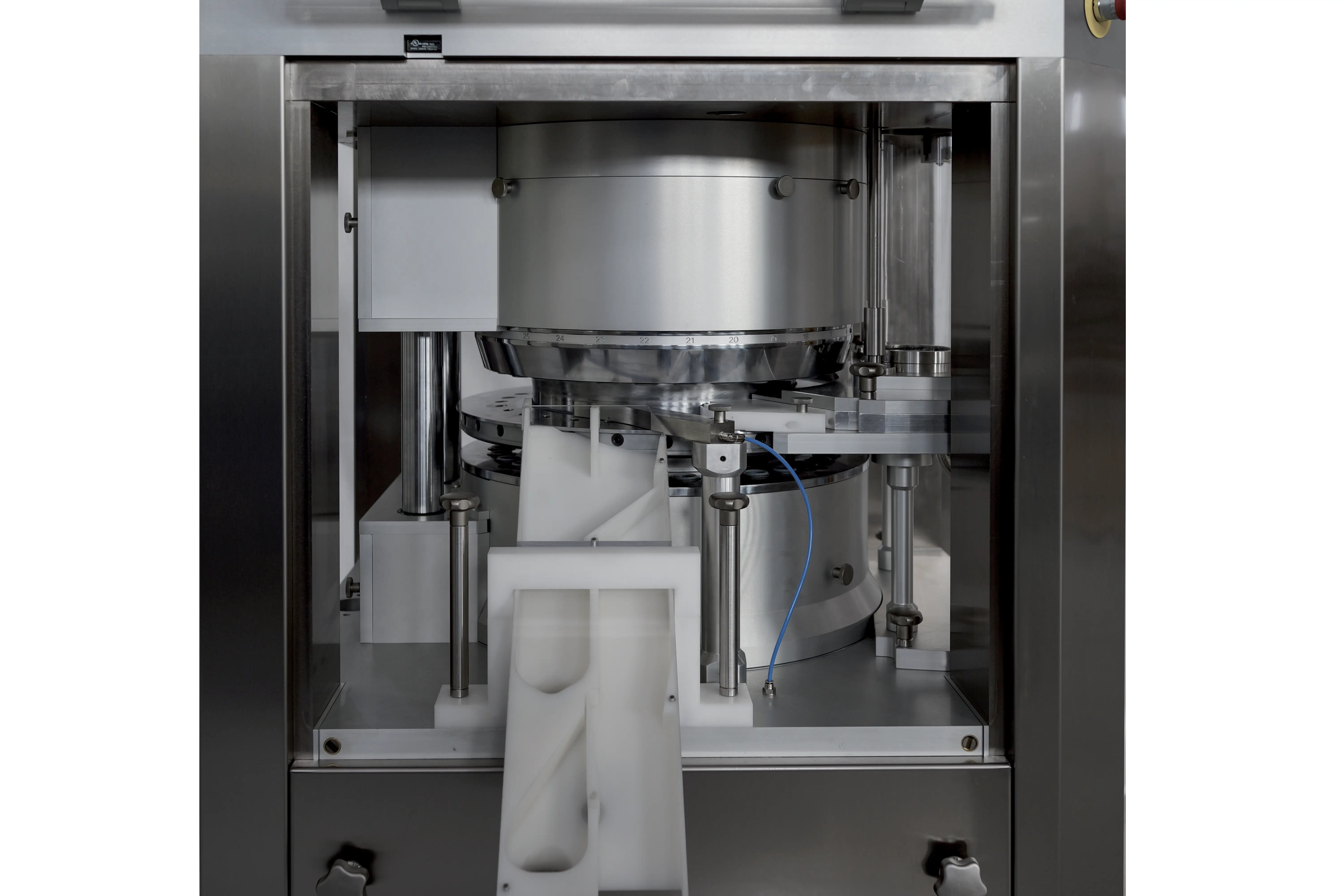

Accessibility: Compression area accessible from all four sides for a comfortable working environment.
Technical data
Turret pitch diameter
410 mm
Max precompression force
100 kN
Max compression force
100 kN
Feeder speed
10-100 rpm
Max filling depth
18 mm
Power consumption
12 kW
Machine weight
2.300 kg
Machine dimension
900x900 h 1.900 mm
Power cabinet weight
300 kg
Power cabinet dimension
800x600 h 1.900 mm
Control cabinet weight
80 kg
Control cabinet dimension
600x600 h 1.600 mm
Variants
| Nr punches stations | Punch type | Max tablet diam. | Die type | Turret speed (rpm) | Tablet output - tab/h |
|---|---|---|---|---|---|
| 30 | EU/TSM - D | 25 | D | 10-100 | 18.000 - 180.000 |
| 36 | EU/TSM - B | 16 | B | 10-100 | 21.600 - 216.000 |
| 43 | EU/TSM - B | 13 | BB | 10-100 | 25.800 - 258.000 |
B&D Italia | PZ-2000
For information, quotes, assistance, and/or technical details
Contact us and request our brochure for a complete overview.
If you want to learn more about the features of the PZ-2000, series, get to know B&D Italia better, receive a personalized quote without obligation, or if you need technical assistance, we are at your disposal
